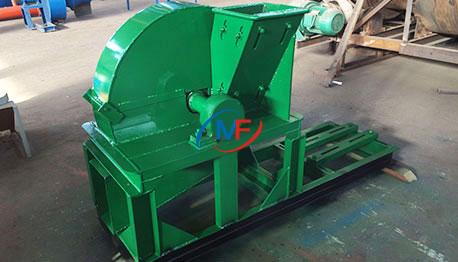

Wood Shaving Machine

This wood shaving machine is mainly used to cut the wood into uniform shavings,and the thickness of shavings can be adjusted from 0.2mm to 1.5mm. The final product can be used as material of particleboard and paper pulp,and also used as bed for animals,such as pigs,cattle,sheep and horse, biomass energy as well.

Different kinds of log,branch,plywood,board or plate,etc.

Model	Power(kw)	Inlet Size(mm)	Capacity(kg/h)	Blade(pcs)	Dimension(mm)	Weight(kg)
420	7.5	140*100	300	4	1200*500*700	200
600	15	190*150	500	4	1550*630*950	380
800	30	240*220	1000	8	1850*800*1400	800
1200	55	220*300	1500	9	2400*1000*1400	1150
1500	75	320*420	2000	12	3000*1200*1800	1600

1. 01The motor : National standard, CE certified, pure copper coil,long and stable working lifetime.
2. 02Controller: Voltage down start to protect the motor and machine
3. 03Feeding hopper: With inner wearing resistant steel plate for long time using.
4. 04Body shell: 6 mm carbon steel plate. Strong and durable. 5,Discharge hole.
5. 05Machine base: GB U steel plate.
6. 06Rotary Plate and blades: The most important part of this machine, 1500mm diameter, 80 mm thickness cast steel plate, 14 mm thickness blades,with 60Si2MnA.alloy edge.
