Disc Crusher

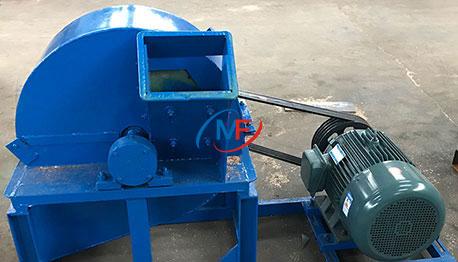

Wood crusher is a kind of chipping and crushing equipment especially for raw material with 50-220 mm (diameter). We can match wood crusher to get the suitable material diameter (3-5mm fine powder) at first. During the working process, the raw material will be chipped, re-crushed and sieved, the wood crusher machine combines both chipping and crushing in one machine to get the wood sawdust directly.

all kinds of crop stalk, cotton firewood, pine, miscellaneous wood, waste wood, bamboo straw,etc.

Model	Power(kw)	Capacity(kg/h)	Feed port size(mm)	Blades number(pcs)
DSJ420	7.5/11	300-500	150*150	4
DSJ500	15/18.5	500-600	180*200	4
DSJ600	22/30	800-1500	230*220	4
DSJ800	45/55	1200-2000	250*250	6
DSJ1000	55/75	1500-4000	270*270	8
DSJ1200	75/90	3000-8000	330*330	8
DSJ1500	110/132	4000-10000	420*400	8

1. 01Rational design, compact structure, safe and durable, high productivity.
2. 02Low noise, simple structure, compact layout, competitive price.
3. 03Stable work, low consumption, high quality, energy saving.
4. 04Easy to operate and maintain.
5. 05Long lifetime.
