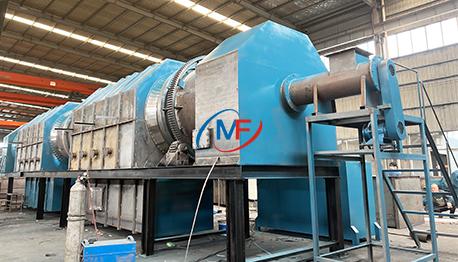

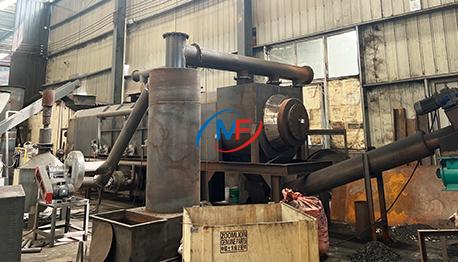

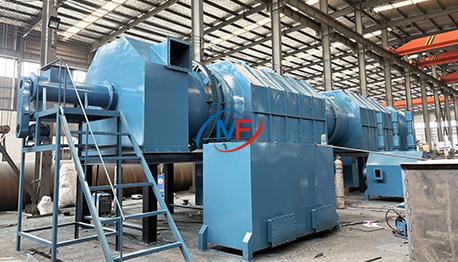

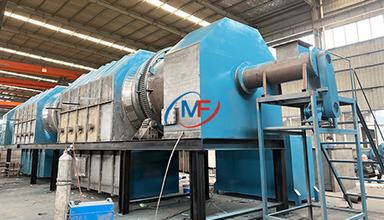

Continuous Rotary Carbonization Furnace

Environmental protection continuous type drum carbonization furnace is suitable for biomass materials. It is the better machine for dry distillation and anaerobic carbonization under high temperature and the carbonization rate is high. The advanced technology of recovering, purifying and circulating combustion of combustible gases such as carbon monoxide, methane and produce smoke lead the carbonization process is adopted reasonably. It not only solves the problem that the ordinary carbonization furnace produce smoke lead the environmental pollution, and also solves the problem of supplying heat required, fully achieve the self-sufficient for the heating source, improves the continuity and economy of the equipment, make full use of agricultural and forestry residues, make it treasure, and make more contributions for the greening of the environment.

Widely used for woodiness materials which containing carbon (size below 50mm granular), such as coconut shell, apricot shell, hemp stalk, sawdust, rice husk, bamboo, eucalyptus, mushroom residue, furfural residue, coffee grounds, palm shell, peanut shell, walnut shell.

Model	Reactor Size (m)	Heating Materials	Dimensions (m)	Power (kw)	Weight (t)	Capacity
THL1000	1*1.05	LPG preheating+ wood gas	12* 8* 5	31.25	8	rice husk ：600-800kg/h coconutshell ：800-1t/h Sawdust ：800kg/h
THL1200	1.2* 1.05	LPG preheating+ wood gas	12* 8* 5	31.25	9.7	rice husk ：800-1000kg/h coconut shell ：1-1.2t/h Sawdust ：1t/h
