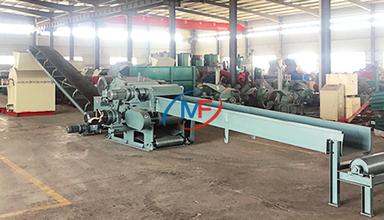

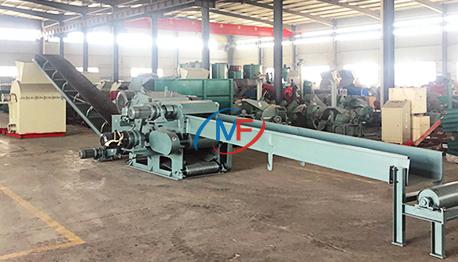

Drum Chipper

Drum chipping machine also known as the drum wood chipper, widely used in particleboard, fibreboard and papermaking and other industrial production of material preparation section, as well as wood chip plant. The raw materials of the drum chipper are mainly path wood, wood cutting leftovers (branches, etc.) and wood processing leftovers (veneer, lath, garden wood core,waste veneer, etc.). It can also be used for cutting non-wood materials (such as hemp, cotton, reed, bamboo, etc.). The raw material after chipping, into a certain specification of small wood chips, as particleboard, medium density board, fibreboard and other paper production raw materials, can also be used as fuel.

Pine, poplar, poplar, fir and other types of wood and bamboo, slab, slicing veneer, bamboo wood, corn stalk, cotton stalk, reed and other non-wood fiber rod can be cut into pieces of uniform chips.

Model	Power (kw)	Blades number (pcs)	Knife roller speed (tum)	Size after crushed (mm)	Capacity (t/h)	Weight (kg)
MF-BX215	37+3+2.2+3	2	592	30	3-4	2990
MF-BX216	55+4+3+3	2	590	30	7-8	5030
MF-BX218	90+4+5.5+4	2	650	30	12-15	7000
MF-BX2113	200+11+11+5.5+4+3	2	500	38	15-30	11840

1. 01Stable working performance
2. 02High throughput capacity and high quality chips
3. 03Easy operation With input and output conveyor and Electric control cabinet
4. 04Can adjust final chips size
5. 05Suitable for Multiple material
