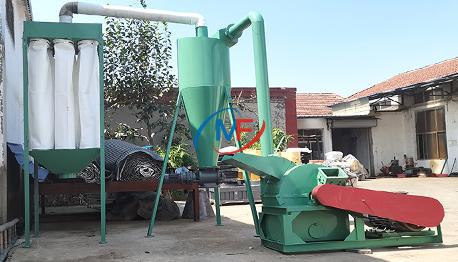

Hammer Mill

Wood hammer mill is endowed with many advantages compared to other kind of crushers such as large reduction rate, high production capacity, even crushed effects, low energy consumption and simple structure, etc. It can be used to crush hard, soft and weakly corrosive materials. After crushing, raw materials are uniform and with proper moisture content to meet further processing.

Crush small sized material with diameter no more than 50mm, such like tree branches, tree trimmings, wood chips, wood cuttings, cotton stalk, corn stalk, wheat straw etc.

model	power (kw)	Capacity (kg/h)	Orifice diameter (mm)	Blades number (pcs)	weight (kg)	size (m)
FJ600	22	600-800	600*240	30	700	1.8*1.8*2.6
FJ700	30	800-1000	700*260	40	800	2.0*1.8*2.6
FJ800	45+7.5+2.2	1200-1800	800*300	56	1200	4.5*2.5*4.5
FJ1000	55+11+11+2.2+2.2	2000-3000	1000*350	84	2700	5.5*3.0*4.5
FJ1000	75+15+15+2.2+2.2	2000-3000	1000*350	84	2700	5.5*3.0*4.5
FJ1300	90+15+15+2.2+2.2	3000-4000	1300*350	108	5000	6.0*3.5*4.5
FJ1300	110+18.5+18.5+2.2+2.2	3000-4000	1300*350	108	5500	6.0*3.5*4.5

1. 01Hammers are the main parts and works the longest time, thus they are easily worn out. The proper adjustment is quite necessary. We adopt mew technology to make hammers and make them wear-resisting and impact resistant.
2. 02The whole crushing system is close, so there is no dust pollution .
3. 03Wood hammer mill is beautifully designed,compact structured and has less wearing parts.
4. 04We avoid defects like the bearing overheating, uneven wood materials, low capacity, high noise,etc. And make it develops towards low energy consumption, High Abrasion Resistance and environment friendly.
5. 05We offer tailored service as well based on your requirements.
