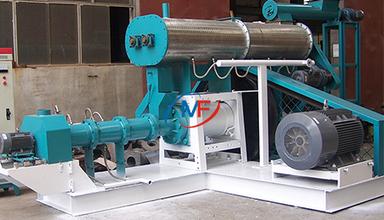

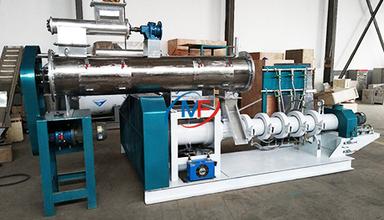

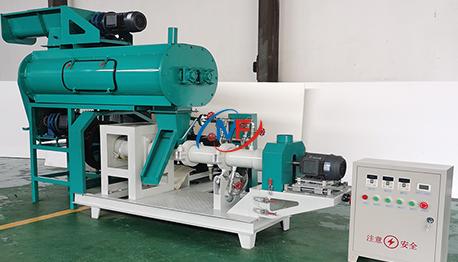

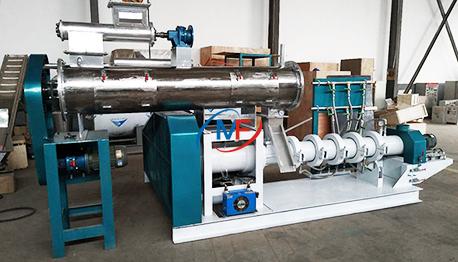

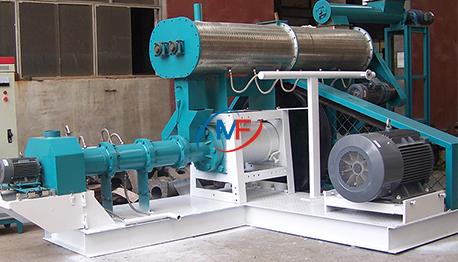

Wet type DSP Fish Feed Extruder Machine

Widely used in corn, wheat bran, rice, soybean meal, rice, sorghum, etc.

Model	Capacity (t/h)	Main power (kw)	Feeding power (kw)	Screw diameter (mm)	Cutting power (kw)	Conditioning power (kw)
DSP60-III	0.18-0.2	15	0.4	60	0.4	0.75
DSP70-III	0.25-0.28	18.5	0.75	70	0.6	1.5
DSP80-III	0.30-0.40	22	1.1	80	1.1	1.5
DSP90-III	0.50-0.60	37	1.1	90	1.1	2.2
DSP120-III	0.70-0.80	55	1.1	90	1.1	2.2
DSP135-III	1.0-1.2	75	1.5	135	2.2	3.0
DSP160-III	1.8-2.0	90	2.2	155	2.2	4.0
DSP200-III	3.0-4.0	132	2.2	195	3.0	5.5

1. 01Boiler continuously offer hot steam into the conditioner, so materials can be fully cooked and the nutritional value is improved. Thus the quality and quantity of pellets can be improved greatly with lower power consumption.
2. 02High temperature and high pressure process can kill the salmonellosis and bacterial infections and also makes the pellets easily to digest.
3. 03Key parts are processed through vacuum quench treatment with high processing precision, thus have a long service life.
4. 04Screw sleeve adopts jacketed construction, which can be injected in with hot steam or cooling water, thus the extruding temperature can be controlled effectively.
5. 05Single-screw extrusion cooking: capable of high production capacities; variable screw speeds.
6. 06You can change different molds to make pellets with different diameters.
