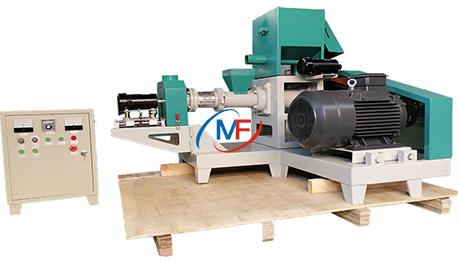

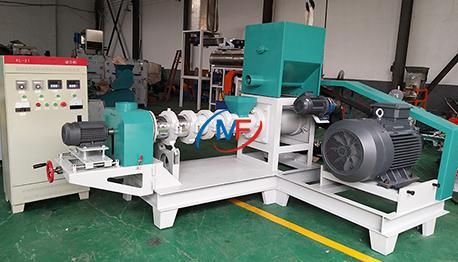

Dry Type DGP Fish Feed Extruder

Fish feed pellets are the popular feed in modern commercial fish farming, providing balanced nutrition needed by fish stock and improving fish farm environment. Due to high price of feed pellets on the market, many farmers tend to purchase fish feed extruder to produce pellets by themselves to low the cost. Here dry type fish feed is recommended for feed pellet production, which is the the specialist contributing to high quality floating fish feeds without steam conditioning of the raw material. With advanced single screw extruder by belt drive, floating fish feed machine is the ideal device in small and medium size feed processing plants and aqua farms. Our fish feed pellet machine can be divided into two types: dry type fish feed machine and wet type feed machine. The wet type is with the conditioner and need to equip the steam boiler. The dry type fish feed extruder is cheaper while the capacity of the wet type fish feed extruder is higher, so usually the wet type fish feed extruder is suitable for large feed pellet factory and the dry type fish feed extruder is better and economic for the small and medium size user or factory.

Applicable raw materials

Widely used in corn, wheat bran, rice, soybean meal, rice, sorghum, etc.

Product parameters

ModelCapacity (t/h)Main Power(kw)Feeding power(kw)Screw diameter(mm)Cutting power(kw)
DGP40-C single phase0.03-0.043.0*20.4φ400.4
DGP40-C three-phase0.03-0.045.50.4φ400.4
DGP50-C0.06-0.08110.4φ400.4
DGP60-C0.12-0.15150.4φ600.4
DGP70-B0.18-0.218.50.4φ700.4
DGP80-B0.2-0.25220.6φ800.6
DGP90-B0.3-0.35370.6φ900.8
DGP120-B0.5-0.6551.1φ1202.2
DGP135-B0.7-0.8751.1φ1332.2
DGP160-B1-1.2901.5φ1553
DGP2000-B1.8-2.01321.5φ1954

Features

  1. 01Advanced technology, high production capacity and low energy consumption.
  2. 02The modular structure is convenient for assembly and disassembly, facilitating the shipment and installation.
  3. 03Final pellet shapes and sizes can be various by changing the mould. For fish and shrimp feed pellet, the floating time in water can be adjusted by the extrusion degree adjustment.
  4. 04In order to ensure quality and production capacity, there is a special supercharging device. In addition, the electric heating device increases the feed expansion rate.
  5. 05Processing is processed at high temperature instantaneous process, greatly reducing the decomposition of nutrients in feed, at the same time improve the protein (through the degeneration of protein) and starch (through starch paste) digestibility, to improve the palatability of the product.
