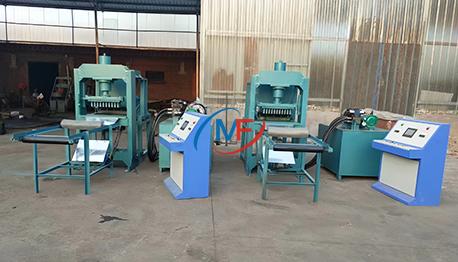

Shisha Hookah Press Machine

This Hydraulic charcoal powder punching machine is new upgrade to improve machine. This machine is a full-automatic machine, different with mechanical machine, the pressure is very high. This charcoal briquette making machine can be produce hookah/ shisha/ nargile charcoal briquette, or BBQ charcoal briquette.Using carbonized coconut charcoal powder, bamboo, sawdust charcoal produce cube shape, cylinder shape, hexagon shape, etc. Sawdust, rice husk, coconut shell, coal powder, paraffin, etc. And hydraulic pump station structure design is reasonable, the highly centralized hydraulic valve and unique oil line design hydraulic system perfect, to reduce the leakage, to ensure that the equipment can produce long-term continuity, improve the product’s production.

Carbon block less than 3mm

1. 01Size:

Small material size is always good for charcoal briquette making before you make your charcoal briquette, please check all of your charcoal fine with the proper size. We recommend you the of under 3mm for making good quality charcoal briquette.

1. 02Moisture:

A moisture around 30-40% is working with the charcoal briquette process, high moisture will build a briquette with high density and with low energy cost on briquetting process. Briquette charcoal with binder

Charcoal is a material totally lacking plasticity and hence needs addition of a sticking or agglomerating material to enable a briquette to be formed. Thus Binder becomes a very important factor is the charcoal briquette making process, pure charcoal is a thing which burns with no smoke, no smell. The use of charcoal determines the type of binder it uses, for industry usage, there would be wider choices in binders.

1. 03Some binders:

starch, clay, slime, tar and pitch, molasses, resin, animal manure, sulphite liquor residues, etc.

1. 04Other additives:

It is possible to add material to aid combustion of briquettes such as waxes, sodium nitrate, and so on, during manufacture to give a more acceptable product.

Usage of some common additives: brown coal (heat source), mineral carbon (heat source), borax, sodium nitrate (ignition aid), limestone (ash-whitening agent), raw sawdust (ignition aid).

Model	Main engine power (kw)	Belt power (kw)	Hydraulic pump power (kw)	Capacity (pcs/h)	Host packaging size (m)	Mould
HYJ450	11	0.75	0.75	19800	2.07*1.27*1.86	cubic, tablet 25, 33, 38mm

1. 05The shisha charcoal making machine suitable for the production of large diameter, the filling amount of tablets.
2. 06The particular design of the forced feeding device, can suppress dry and wet many kinds of materials.
3. 07The inlet particle size of raw material: It must be less than 2mm, the water content should be 12%-15%.
4. 08The shisha charcoal making machine with specially designed auxiliary equipment, can realize the automatic feed, automatically sends finished products.
