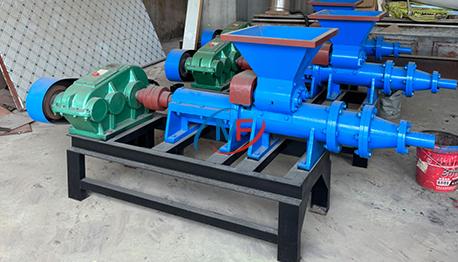

Charcoal Coal Extruder Machine

The charcoal powder extruder is mainly used to make artificial charcoal from charcoal powder and the motor transmits power to the transmission through the V-belt. The transmission output shaft transmits the power to the propeller through the floating coupling, and the propeller pushes the coal forward through the forming die to produce an ideal high-pressure charcoal briquettes.

The raw materials can be coal powder, iron powder, coke, aluminum powder, iron filings, iron oxide scale, carbon powder, charcoal powder, slag, gypsum, tailings, sludge, kaolin, activated carbon, waste powder and waste residue.

Model	Power (kw)	Size (mm)	weight (kg)	production (t/h)
Coal stick machine
140	11	1950*1260*1080	560	1-2t/h
160	15	2150*1260*1080	600	1-2t/h
180	22	2320*1600*1150	1260	2-4t/h
segmenting machine
Small cutting machine (without conveyor)	Air pump 30L	590*300*770	35
Cutting and conveying integrated	Air pump 30L	1570*470*590	45

1. 01Advantages of our machine: high efficiency, energy saving and environmental protection.
2. 02The final briquettes are easy to transport and store.
3. 03The shape and size of the stick can be made as required, such as round, hexagonal, pentagonal, etc. In the center of the stick, it may or may not have a hole.
4. 04The briquette extruder is the main equipment in the molding fuel system. It can extrude pulverized coal into briquette rods with a certain hardness (which can be made into various shapes according to customer requirements) instead of lump coal, which can make full use of pulverized coal and reduce fuel cost.
