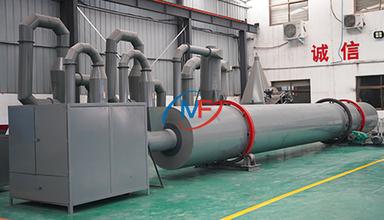

Rotary Drum Dryer

As a traditional drying machine, rotary drum dryer is an industrial dryer machine employed to reduce or minimize the moisture content of sawdust or wood chips. Reasonable structure, high efficiency, low energy consumption and convenient for transportation makes sawdust dryer and out among wood material drying equipment.

various biomass materials like sawdust, wood shavings and agricultural straw.

Model	Power (kw)	Fan (kw)	Windshield (kw)	Capacity (kg/h)	Weight (t)	Drum diameter (m)	Drum length (m)	Total length (m)
GT-630	5.5	7.5	1.5	600-900	2.8-3.2	0.63	9	16
GT-800	5.5	7.5	1.5	800-1200	3.5-4	0.8	10.5	18
GT-1000	7.5	11	2.2	1000-1400	5-5.5	1	12	21
GT-1200	7.5	15	2.2	1200-1600	6-6.5	1.2	12	21
GT-1500	11	18.5	2.2	1500-2000	9	1.5	14	24
GT-1800	11	18.5	2.2	1800-2500	12	1.8	14	24
GT-2000	15	22	2.2	2200-2800	14	2	14	24

1. 01High heat transfer coefficient and thermal efficiency.
2. 02Strong overloading capacity resistance, large process load, low fuel consumption and low cost.
3. 03The product moisture can be dried less than 8% and the granularity should be less than 8mm.
4. 04The operation of the rotary drum is stable and reliable.
5. 05Fully automatic control, large drying capacity from 0.5-2.5ton per hour. 06High temperature(≤700℃) resistance ensures efficient drying.
