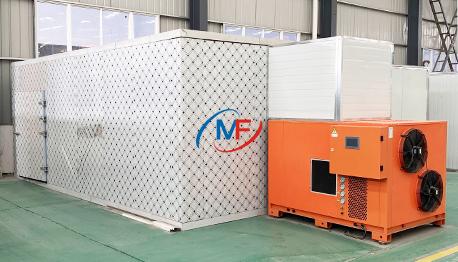

Box Dryer

Hookah charcoal dryer/ bbq charcoal dryer is the ideal equipment for the quick drying of the shisha/hookah charcoal or barbecue charcoal briquettes, which also named charcoal drying box or charcoal dryer room. The charcoal dryer machine is very suitable for the commercial charcoal production line to make charcoal in large quantities.

The drying machine adopts a fully enclosed structure and the hot air circulates in the box, which can shorten the drying time of the materials and ensures the product quality. Generally, the dryer machine can reduce the materials’ moisture content from 40% to 8% during about 7-8 hours. And the machine has the features of easy installation, convenient demolition and relocation, and less floor space.

There is the heat pump outside the drying box for making the hot air for drying. The inner structure of the dryer machine includes the fan, special drying carts and drying trays. The fan also has two types in this drying machine, one kind is for blowing the hot air into the room evenly, and the other is always set on the top of the room for extracting the moisture of the materials. The drying carts is just a very simple frame with layers and wheels that can be moved easily in the drying room. The drying trays are always made of the stainless steel so that they are very suitable for drying the shisha charcoal or bbq charcoal briquettes because the stainless steel/ PP/ Alloy will not be stuck by the charcoal when drying.

Model	HGXX	HGXD
Drying room Dimensions (m)	3.8 * 1.9 * 2.1	8.3 * 3 * 2.85
Fan motor	9 * 250w	12 * 750w kw
Heating panel motor	12kw 380v	24kw
Trays	800*600mm*1.5kg (96pcs)	800*600mm*1.5kg (360pcs)
Drying Time needed	8 hours/time	8 hours/time
Mobile type	Trays	Trolley with trays

1. 01The charcoal dryer machine is very easy for installation and maintenance with a simple structure. Its size can be customized according to customers’requirements about the output.
2. 02The temperature of the inner dryer room can be set and adjusted according to the materials’moisture content.
3. 03The dryer room walls are made of heat insulation board, and the inner heat insulation cotton material is very special, which can effectively reduce heat emission.
4. 04Except for drying the shisha/hookah charcoal and charcoal or coal ball, this drying machine can also be widely used for drying fruits and vegetables in large scale.
5. 05Low investment, fast-drying speed, and high evaporation intensity.High working efficiency, large output, and good product quality.
